Tuebingen Type Ventilation Tubes – outstanding performance of 30 years

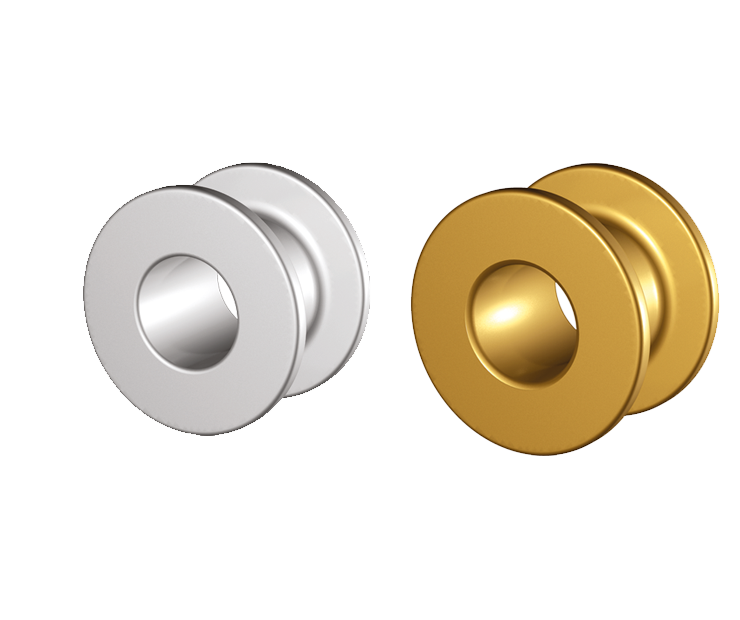

TUEBINGEN TYPE VENTILATION TUBE

Large inner lumen
Particularly smooth Surface
Relatively small outer diameter
Gold-Platinum
Gilded silver
Pure titanium

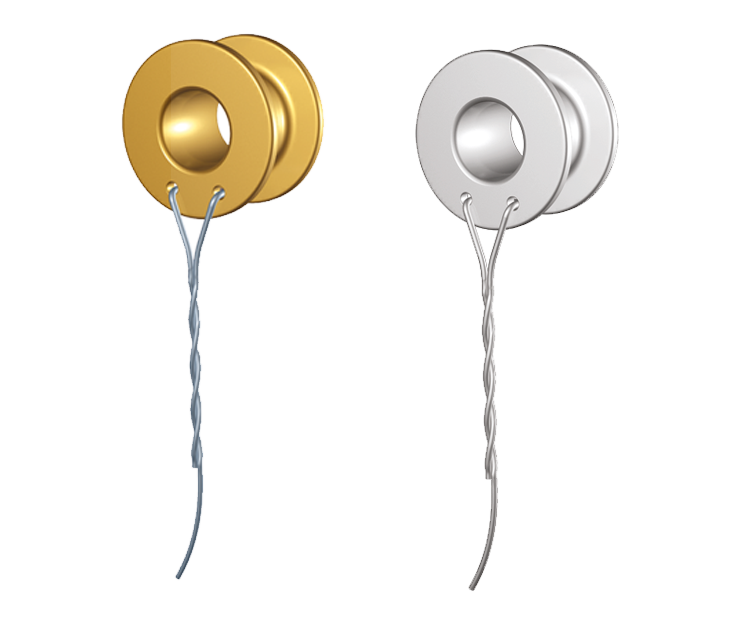

TUEBINGEN TYPE VENTILATION TUBE

WITH WIRE

Larger inner lumen
Particularly smooth surface
Relatively small outer diameter
Gold-Platinum
Gilded silver
Pure titanium

Product Information

OPTIMAL FIT DUE TO SHORT LENGTH

Tuebingen Tubes are classic "collar button" ventilation tubes for aeration of the middle ear. A particularly smooth surface and large inner lumen facilitates secretion discharge and drainage while the outer diameter is comparatively small. This tube comes in three different diameters providing flexibility in ventilation time, suction access and canal dimension without changing insertion technique.

The Tuebingen tube has a relatively short length which, combined with wide flanges, ensures a more consistent fit into the tympanostomy. If required, a tube with retention wire can make the insertion easier.

Benefits

Facilitated secretion discharge and drainage via large inner lumen
More consistent fit into the tympanostomy
Facilitated insertion

Ordering Information

Ordering Information - Gold-Platinum

MATERIAL: GOLD-PLATINUM	ID mm	OD mm	LENGTH mm	REF
Size 1	1.25	2.55	1. 60	1015 001
Size 1 with wire Not MRI conditional	1.25	2.55	1.60	1015 002
Size 2	1.50	2.80	1.60	1015 003
Size 2 with wire Not MRI conditional	1.50	2.80	1.60	1015 004

Packing unit 10 pieces/box

Ordering Information - Gilded Silver

MATERIAL: GILDED SILVER	ID mm	OD mm	LENGTH mm	REF
Size 1	1.25	2.55	1. 60	1015 010
Size 1 with wire Not MRI conditional	1.25	2.55	1.60	1015 011
Size 2	1.50	2.80	1.60	1015 012
Size 2 with wire Not MRI conditional	1.50	2.80	1.60	1015 013

Packing unit 10 pieces/box

Ordering Information - Pure Titanium

MATERIAL: PURE TITANIUM (ASTM F67)	ID mm	OD mm	LENGTH mm	REF
Size 0	1.00	2.00	1.60	1015 036
Size 1	1.25	2.55	1.60	1015 030
Size 1 with wire Not MRI conditional	1.25	2.55	1.60	1015 031
Size 2	1.50	2.80	1.60	1015 032
Size 2 with wire Not MRI conditional	1.50	2.80	1.60	1015 033

Packing unit 10 pieces/box

Prescription Devices Caution:

United States Federal Law restricts devices identified herein to sale by or on the order of a physician.
These pages do not replace nor do they set forth the complete contents of the “Instructions for Use” for the products shown here, and are not substitute for reviewing and understanding that important information. Therefore, before using any products included here, please review the entire contents of the respective “Instructions for Use” information.
Because of registration the product is currently not available in all countries.

DMS 0004016_Rev.01
