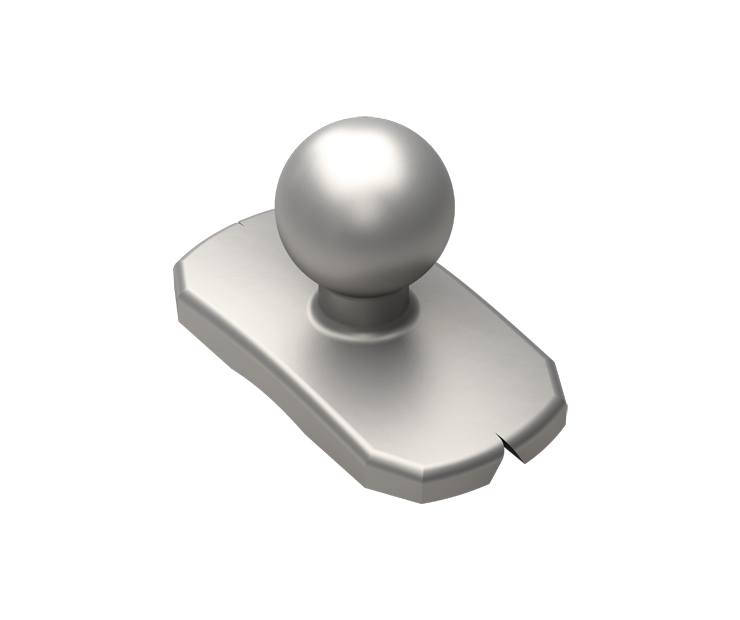

OMEGA CONNECTOR for Tympanoplasty

Increases the medial surface contact of a Total Prosthesis.

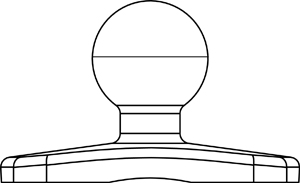

Micro ball connects with the cannulated stem of the KURZ Total Prosthesis: Accommodates drum to headplate angles without prosthesis manipulations.

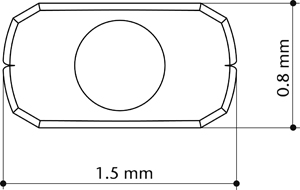

Undersurface of the shoe with longitudinally milled recess to compensate for footplate irregularity.

OMEGA CONNECTOR

Compatible with all KURZ total prostheses that have a hollow stem with a diameter of 0.8 mm at the end of the shaft:

TTP-VARIAC System Total
TTP-VARIO AERIAL Total
TTP-Tuebingen Type AERIAL Total
Duesseldorf Type AERIAL Total
MNP Malleus Notch Total Prosthesis
Munich^LMU Type Total Prosthesis
MR conditional for the future: 7.0 Tesla

Product Information

OPTIMIZED FIT

The OMEGA CONNECTOR is designed to compensate for tympanic membrane movements and provide additional stability to KURZ Total Prostheses. With sufficient footplate access, it increases the implants medial surface contact. The micro ball connects with the cannulated stem of the KURZ total prosthesis. In this way, it accommodates drum to headplate angles without prosthesis manipulations.

With the specially developed OMEGA CONNECTOR Sizer the surgeon can intraoperatively determine whether adequate space prevails between the stapes crura remnants. The measuring tip precisely corresponds to the dimensions of the OMEGA CONNECTOR.

To place the OMEGA CONNECTOR first into the middle ear an aspiration tip is ideally used. The cupped medial end of the total prosthesis is assembled with the OMEGA in situ. No adhesive necessary.

Developed in close collaboration with Dr. med. G. Schmid, Reutlingen, Germany.

Benefits

Increases medial surface contact of KURZ Total Prostheses
Compensates for tympanic membrane movements
Provides additional stability to KURZ Total Prostheses
Accomodates drum to headplate angles without prosthesis manipulations
Clinically evaluated
Excellent biocompatibility

Ordering Information

Ordering Information - OMEGA CONNECTOR

ITEM	FL (mm)	REF
OMEGA CONNECTOR	0.5 mm	1004 930

FL: Functional Length

Material: Pure Titanium (ASTM F67 Medical Grade)

The OMEGA CONNECTOR is compatible with:

ITEM	REF
TTP-VARIAC SYSTEM Total	1004 020
TTP-VARIO AERIALTotal	1004 010
TTP-Tuebingen Type AERIAL Total	1004 234 to 1004 249
Duesseldorf Type AERIAL Total	1004 034 to 1004 049
MNP Malleus Notch Total Prosthesis	1004 434 to 1004 449
Munich LMU Type Total Prosthesis	1004 074 to 1004 089

Prescription Devices Caution:

United States Federal Law restricts devices identified herein to sale by or on the order of a physician.
These pages do not replace nor do they set forth the complete contents of the “Instructions for Use” for the products shown here, and are not substitute for reviewing and understanding that important information. Therefore, before using any products included here, please review the entire contents of the respective “Instructions for Use” information.
Because of registration the product is currently not available in all countries.

PRODUCT VIDEO

Literature

Results of chain reconstruction with missing stapes
superstructure using a jointed coupling module
(Omega connector) with titanium total prostheses

Fischer M.

Published: German Society for Oto-, Rhino-, Laryngology, Head and Neck
Surgery. 86th Annual Meeting of the German Society for Oto-, Rhino-, Laryngology,
Head and Neck Surgery e.V. Berlin, May 13-16, 2015. Düsseldorf:
German Medical Science GMS Publishing House; 2015. March 26,
2015. Poster Abstract.

Literature

Ossiculoplasty with Total Ossicular Replacement
Prosthesis and Omega connector: Early Clinical Results
and Functional Measurements

Mantei T., Chatzimichalis M., Sim J. H., Schrepfer T.,
Vorburger M., Huber A. M.

Published: Otology & Neurotology 09/2011: 32(7):1102-7
