Bucket Type Stapes Prosthesis- Piston in pure titanium

Comparatively deep well compared with other bucket design prostheses for the lenticular process of the incus. The well is available in two diameters.

Bail wire configured for better manage events of dislocation.

BUCKET TYPE STAPES PROSTHESIS

Facilitates surface contact on the medial side of the incus process
Excellent biocompatibility and reduced weight due to its lightweight, pure titanium composition,
Used in combination with a vein graft surgical technique
Pure titanium
MR conditional for the future: 7.0 Tesla

Product Information

COMPLETES THE PORTFOLIO OF COUPLING OPTIONS

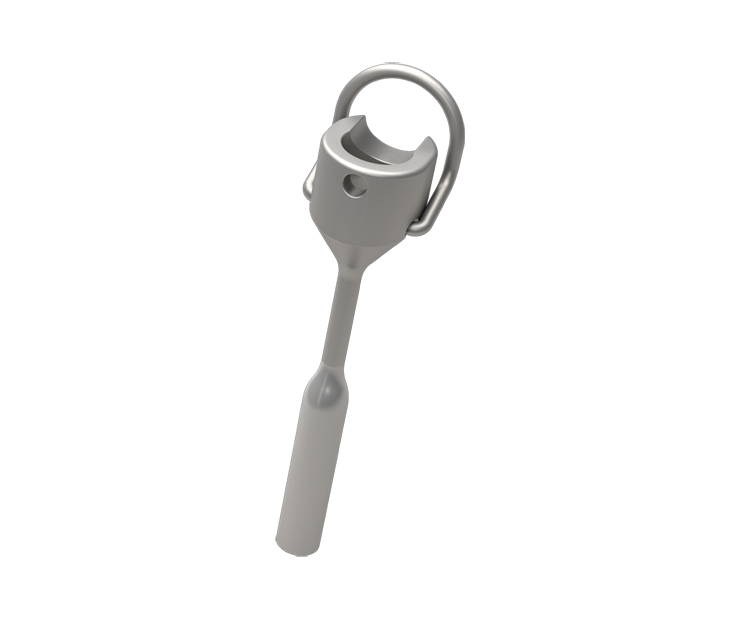

The KURZ Bucket Type Stapes Prosthesis is a pure titanium prosthesis with a deep well for the lenticular process of the incus. A bail wire is constructed to be placed around the lenticular process. This will better manage events of dislocation.

The prosthesis should be used in combination with a vein graft technique.

Developed in close collaboration with Joseph Roberson MD, Palo Alto, USA.

Benefits

To manage a broad variety of lenticles
Facilitates surface contact on the medial side of the incus
Better intraoperative management and handling in events of dislocation

Ordering Information

Ordering Information - Inner Diameter 0.9 mm

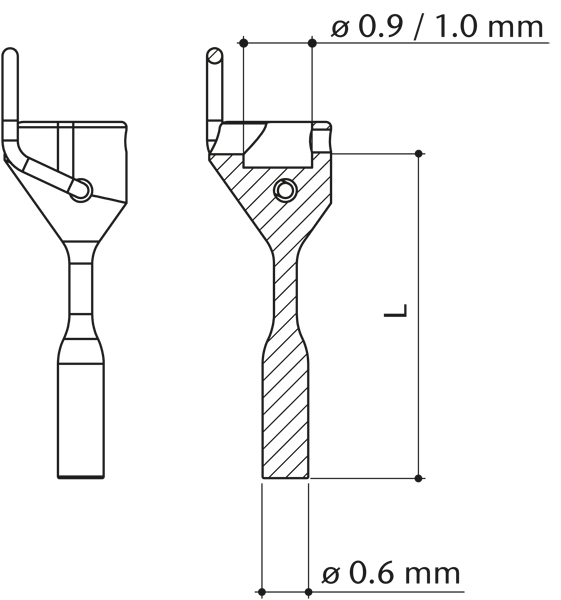

LENGTH L (mm) INNER DIAMETER (ID) 0.9 mm	REF
4.00	1006 543
4.25	1006 544
4.50	1006 545

Material: Pure Titanium (ASTM F67 Medical Grade)

Ordering Information - Inner Diameter 1.0 mm

LENGTH L (mm) INNER DIAMETER (ID) 1.0 mm	REF
4.00	1006 563
4.25	1006 564
4.50	1006 565

Material: Pure Titanium (ASTM F67 Medical Grade)

Prescription Devices Caution:

United States Federal Law restricts devices identified herein to sale by or on the order of a physician.
These pages do not replace nor do they set forth the complete contents of the “Instructions for Use” for the products shown here, and are not substitute for reviewing and understanding that important information. Therefore, before using any products included here, please review the entire contents of the respective “Instructions for Use” information.
Because of registration the product is currently not available in all countries.

DMS 0004014_Rev.01
